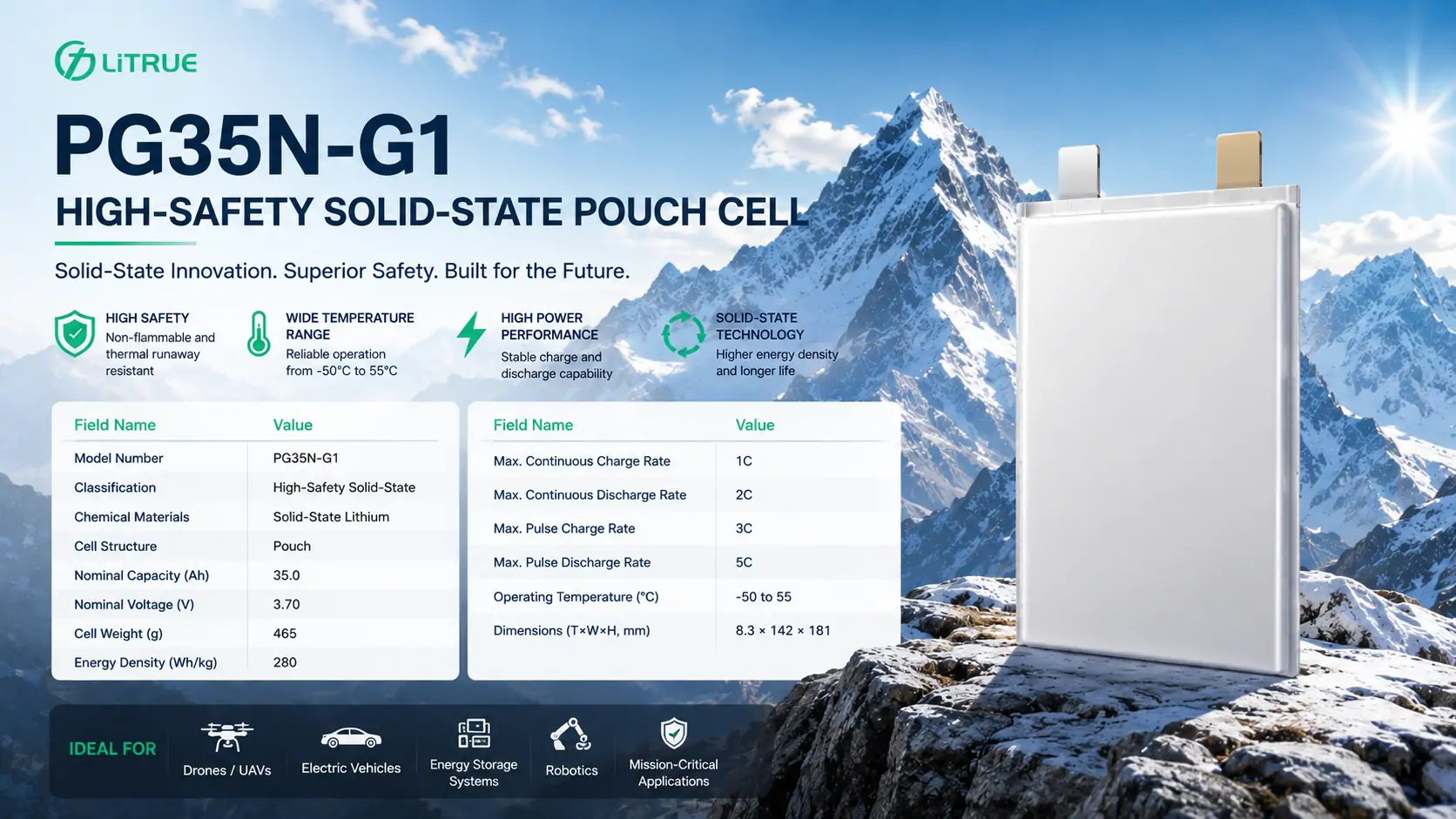

| Field Name | Value |
|---|---|
| Model Number | PG35N-G1 |
| Classification | High-Safety Solid-State |
| Chemical Materials | Solid-State Lithium |
| Cell Structure | Pouch |
| Nominal Capacity (Ah) | 35.0 |
| Nominal Voltage (V) | 3.70 |
| Cell Weight (g) | 465 |
| Energy Density (Wh/kg) | 280 |
| Max. Continuous Charge Rate | 1C |
| Max. Continuous Discharge Rate | 2C |
| Max. Pulse Charge Rate | 3C |
| Max. Pulse Discharge Rate | 5C |
| Operating Temperature (°C) | -50 to 55 |
| Dimensions (T×W×H, mm) | 8.3 × 142 × 181 |
Other Cells in the High-Safety Solid-State Series
| Model | Dimensions (T×W×H, mm) | Capacity (Ah) | Voltage (V) | Weight (g) | Energy Density (Wh/kg) | Max Continuous C/D | Max Pulse C/D | Operating Temp |
|---|---|---|---|---|---|---|---|---|
| PG30N-G | 8.5×142×181 | 30 | 3.70 | 460 | 241 | 1C/2C | 3C/5C | -50℃~55℃ |
| PG35N-G1 | 8.3×142×181 | 35 | 3.70 | 465 | 280 | 1C/2C | 3C/5C | -50℃~55℃ |
Solution
Cold-weather systems face a familiar problem: low temperatures reduce usable power margin just when takeoff, acceleration, or other peak-load events demand more of the battery. A cell selected only around nominal capacity can force the pack designer to add parallel cells and mass simply to preserve operating headroom.
PG35N-G1 is a 35Ah high-safety solid-state pouch cell built for projects that need a defined -50°C to 55°C operating range alongside usable power delivery. Its 2C continuous and 5C pulse discharge ratings support sustained load and short peak events, while 280Wh/kg helps manage system mass. View LiTrue’s broader range of battery cells for other cell formats and electrical profiles.
Application Areas
- Industrial UAVs: 2C continuous discharge supports sustained propulsion demand, while 5C pulse capability addresses short takeoff and maneuver loads.
- Cold-Climate Equipment: the stated -50°C to 55°C operating range gives integrators a clear basis for low-temperature system validation.
- Portable Power Systems: 35Ah capacity at 3.70V supports series-parallel battery designs where runtime, weight, and package dimensions must be balanced.
- Safety-Focused Custom Packs: the high-safety solid-state cell platform suits applications that require cell-level safety considerations as part of the pack design; see LiTrue battery-pack solutions for integration support.
FAQs
What continuous and pulse current can PG35N-G1 deliver?
PG35N-G1 is rated for 1C continuous charging, 2C continuous discharge, 3C pulse charging, and 5C pulse discharge. Based on 35Ah capacity, this equals 70A continuous discharge and 175A pulse discharge; confirm permitted pulse duration and thermal conditions for the final design.
Can PG35N-G1 operate at low temperatures?
Yes. The stated operating-temperature range is -50°C to 55°C. Actual available capacity, charging performance, and thermal behavior must be validated under the intended load profile.
What pack voltage can be built with this cell?
Each cell is 3.70V nominal. For example, a 12S configuration is 44.4V nominal and a 14S configuration is 51.8V nominal. Contact LiTrue’s engineering team to define the appropriate series-parallel configuration.
What is the cycle life of PG35N-G1?
Cycle-life data for this model should be confirmed with LiTrue engineering or laboratory documentation before it is included in a customer specification. Cycle performance depends on charge/discharge rate, depth of discharge, operating temperature, and pack thermal management.
