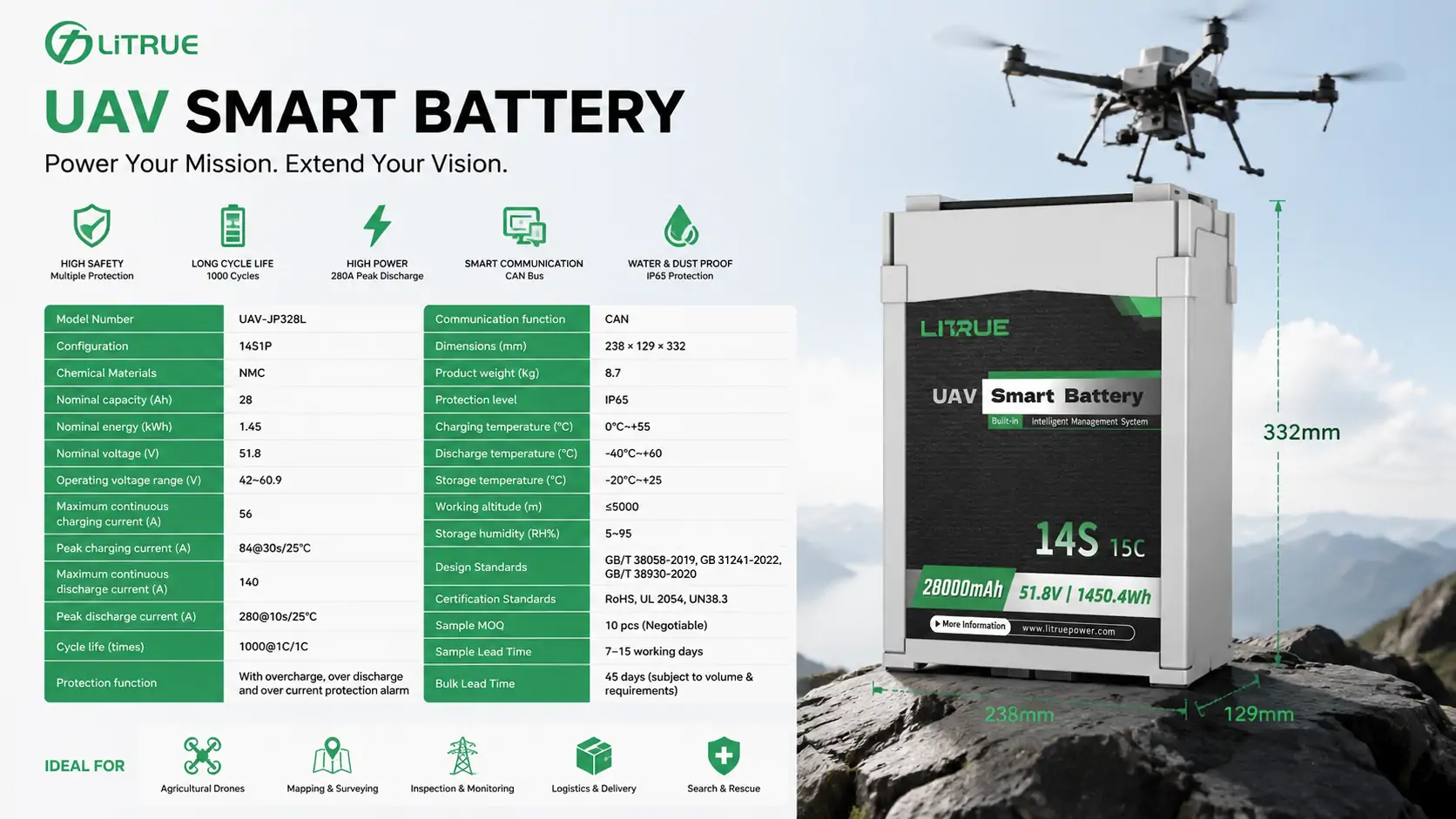

| Model Number | UAV-JP328L |
|---|---|
| Configuration | 14S1P |
| Chemical Materials | NMC |
| Nominal capacity (Ah) | 28 |
| Nominal energy (kWh) | 1.45 |
| Nominal voltage (V) | 51.8 |
| Operating voltage range (V) | 42～60.9 |
| Maximum continuous charging current (A) | 56 |
| Peak charging current (A) | 84@30s/25℃ |
| Maximum continuous discharge current (A) | 140 |
| Peak discharge current (A) | 280@10s/25℃ |
| Cycle life (times) | 1000@1C/1C |
| Protection function | With overcharge, over discharge and over current protection alarm |
| Communication function | CAN |
| Dimensions (mm) | 238×129×332 |
| Product weight (Kg) | 8.7 |
| Protection level | IP65 |
| Charging temperature (℃) | 0℃～+55 |
| Discharge temperature (℃) | -40～+60 |
| Storage temperature (℃) | -20～+25 |
| Working altitude (m) | ≤5000 |
| Storage humidity (RH%) | 5～95 |
| Design Standards | GB/T 38058-2019, GB 31241-2022, GB/T 38930-2020 |
| Certification Standards | RoHS, UL 2054, UN38.3 |
| Sample MOQ | 10 pcs (Negotiable) |
| Sample Lead Time | 7–15 working days |
| Bulk Lead Time | 45 days (subject to volume & requirements) |
Ideal Applications
- Heavy-lift Agricultural Drone
- Aerial Mapping and Surveying UAV
- Industrial Inspection Drone
- Logistics and Delivery UAV
Solution
Heavy-lift and industrial UAVs do not only need more energy. They need the pack to hold voltage when motors pull hard during takeoff, climbing, wind correction, and payload maneuvers. A lightweight pack with weak discharge headroom can shorten missions or trigger conservative power limits before the battery is actually empty.
The UAV-JP328L is built for that higher-load profile. It combines 51.8V nominal voltage, 28Ah capacity, and 1.45kWh energy with 140A continuous discharge and 280A peak discharge for 10 seconds at 25°C. CAN communication, IP65 protection, and a 14S1P NMC design make it a practical battery platform for UAV OEMs and fleet operators. See LiTrue's full range of UAV lithium battery packs for related models.
FAQs
How much current can the UAV-JP328L deliver?
The UAV-JP328L supports 140A maximum continuous discharge. For short load windows, it supports 280A peak discharge for 10 seconds at 25°C. Final aircraft performance still depends on motors, ESCs, wiring, cooling, and flight profile.
What voltage system does this battery use?
It uses a 14S1P NMC configuration with 51.8V nominal voltage. The operating voltage range is 42V to 60.9V, so the UAV flight controller, ESCs, charger, and protection settings should be matched to that range.
Is this battery suitable for outdoor industrial UAV work?
Yes. The pack has IP65 protection, -40°C to +60°C discharge temperature range, and a working altitude rating of ≤5000m. Charging should remain within 0°C to +55°C, and storage should remain within -20°C to +25°C.
Does it support smart battery communication?
Yes. The UAV-JP328L uses CAN communication. That allows compatible UAV systems to read battery status and protection alarms from the integrated BMS.
Can LiTrue customize this battery for an OEM drone platform?
Yes. LiTrue can support connector selection, enclosure adjustment, CAN protocol alignment, BMS settings, and pack validation for UAV OEM projects. Send the target flight time, peak current, payload weight, aircraft voltage, and battery bay size to the LiTrue engineering team.
