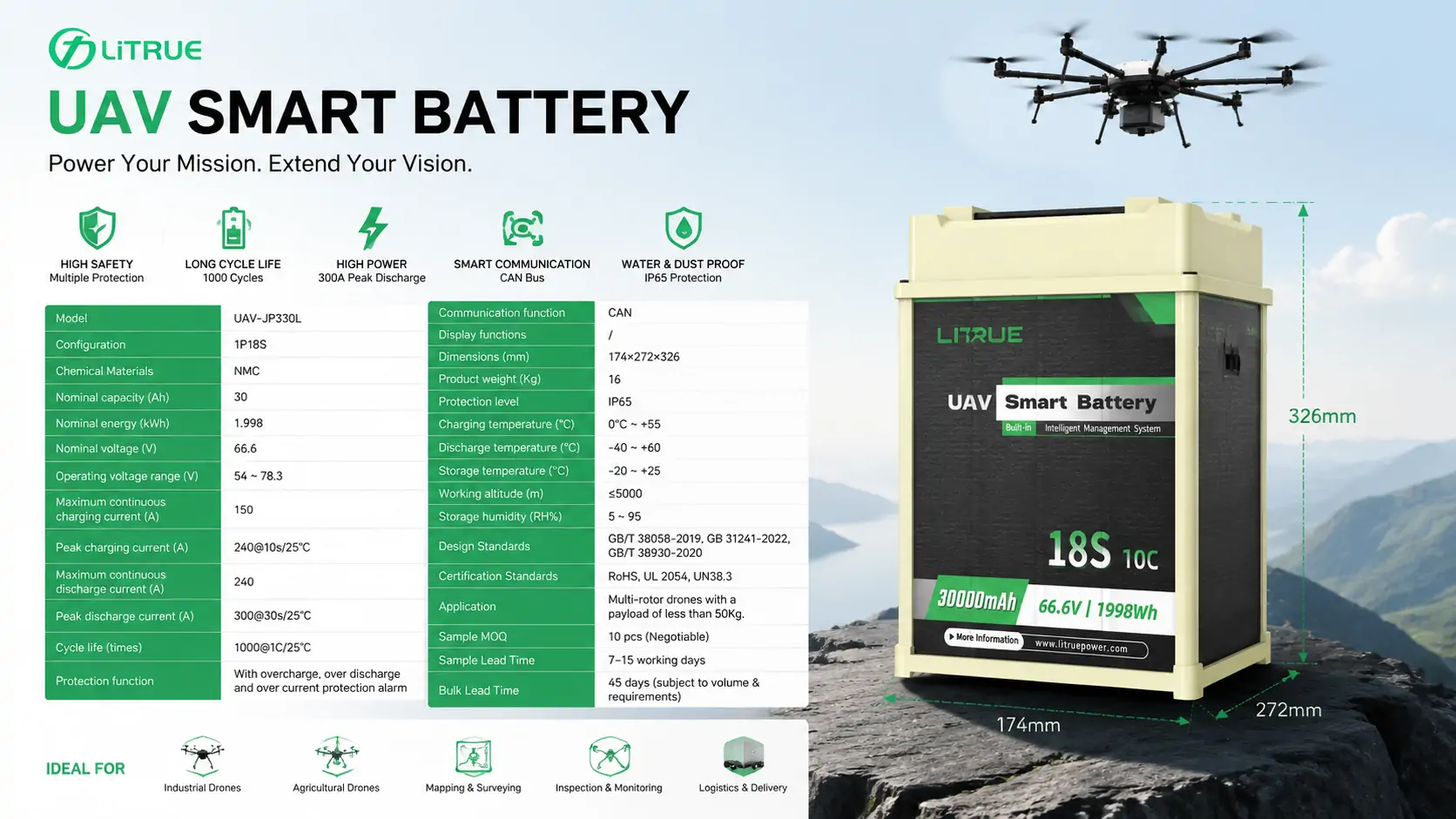

For B2B procurement specialists and drone engineers, precise data is critical. Below is the complete, unabridged technical specification sheet for the UAV-JP330L:
| Model | UAV-JP330L |
|---|---|
| Configuration | 1P18S |
| Chemical Materials | NMC |
| Nominal capacity (Ah) | 30 |
| Nominal energy (kWh) | 1.998 |
| Nominal voltage (V) | 66.6 |
| Operating voltage range (V) | 54 ~ 78.3 |
| Maximum continuous charging current (A) | 150 |
| Peak charging current (A) | 240@10s/25°C |
| Maximum continuous discharge current (A) | 240 |
| Peak discharge current (A) | 300@30s/25°C |
| Cycle life (times) | 1000@1C/25°C |
| Protection function | With overcharge, over discharge and over current protection alarm |
| Communication function | CAN |
| Display functions | / |
| Dimensions (mm) | 174×272×326 |
| Product weight (Kg) | 16 |
| Protection level | IP65 |
| Charging temperature (°C) | 0°C ~ +55 |
| Discharge temperature (°C) | -40 ~ +60 |
| Storage temperature (°C) | -20 ~ +25 |
| Working altitude (m) | ≤5000 |
| Storage humidity (RH%) | 5 ~ 95 |
| Design Standards | GB/T 38058-2019, GB 31241-2022, GB/T 38930-2020 |
| Certification Standards | RoHS, UL 2054, UN38.3 |
| Application | Multi-rotor drones with a payload of less than 50Kg. |
| Sample MOQ | 10 pcs (Negotiable) |
| Sample Lead Time | 7–15 working days |
| Bulk Lead Time | 45 days (subject to volume & requirements) |
Solution
Large multi-rotor UAVs do not fail because the battery has no energy on paper. They fail when the pack cannot hold power under climb, wind correction, payload lift, or repeated high-thrust maneuvers. For drones below 50kg payload class, the battery has to deliver both usable energy and high current without turning into dead weight.

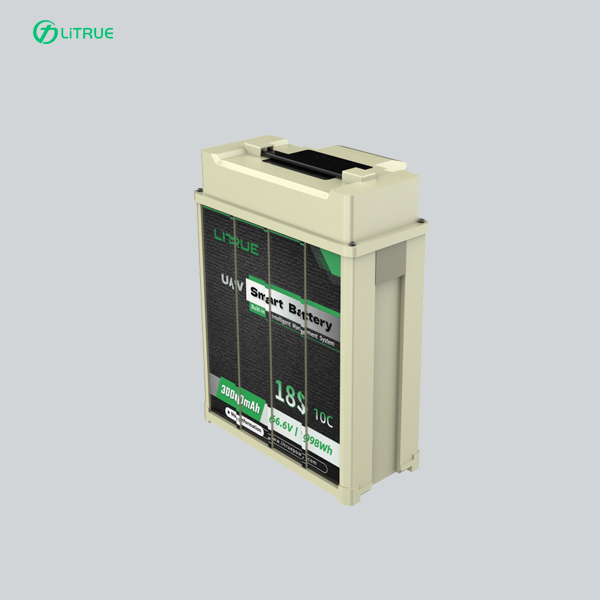

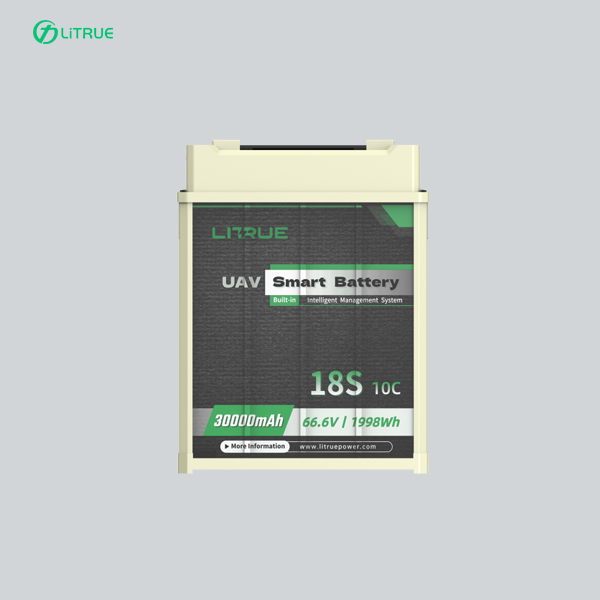

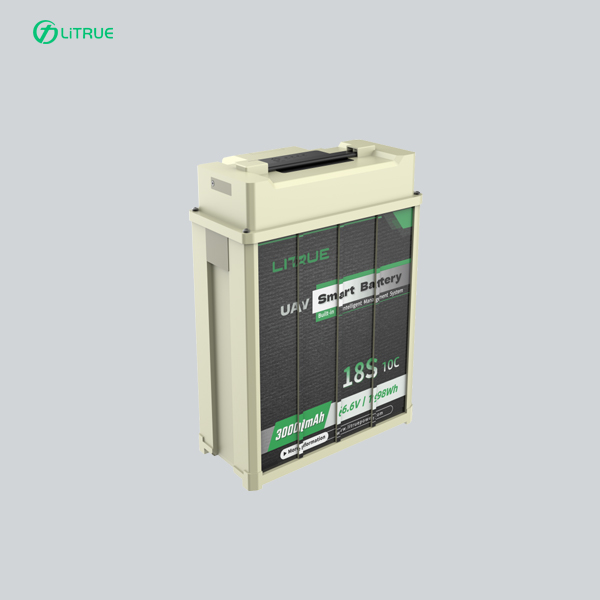

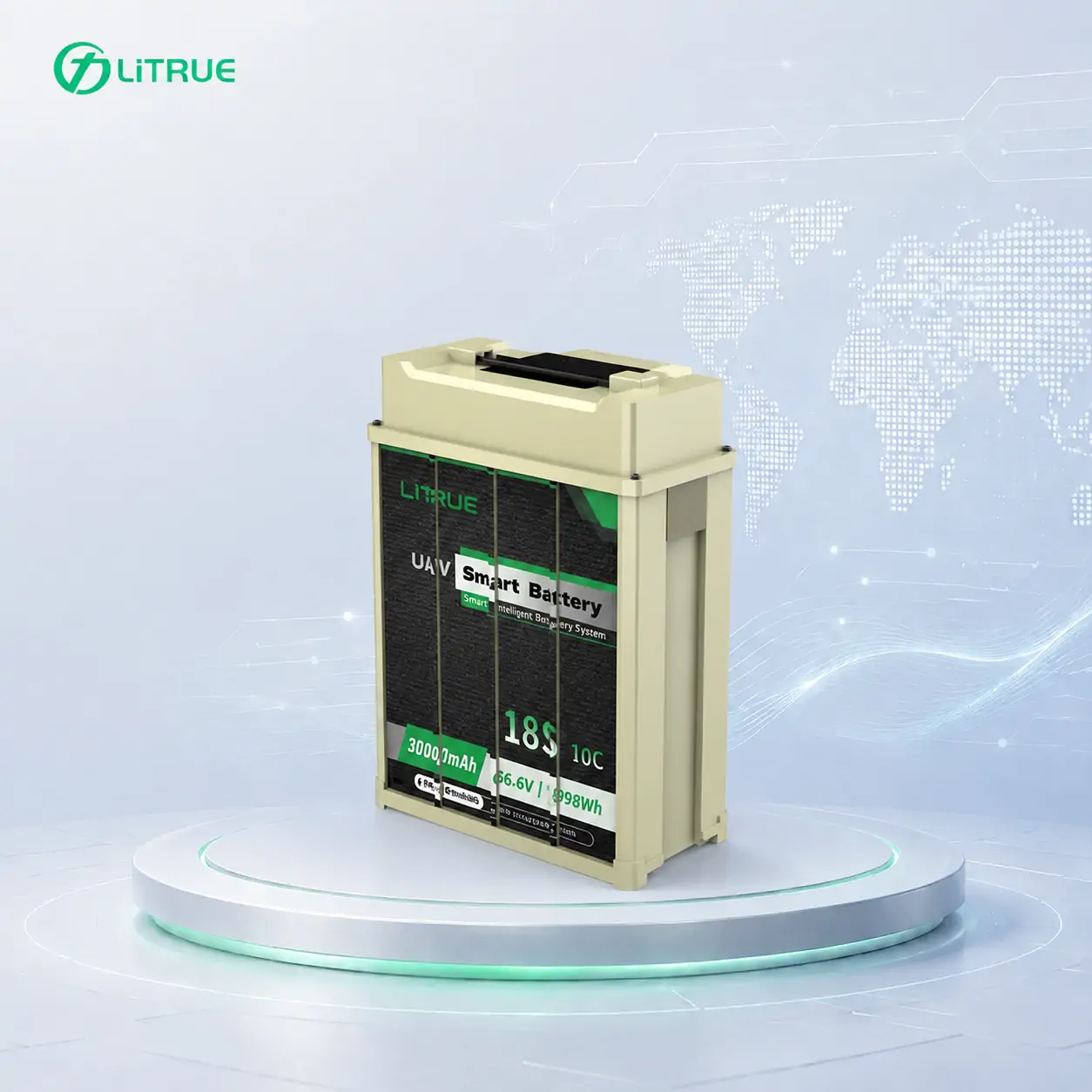

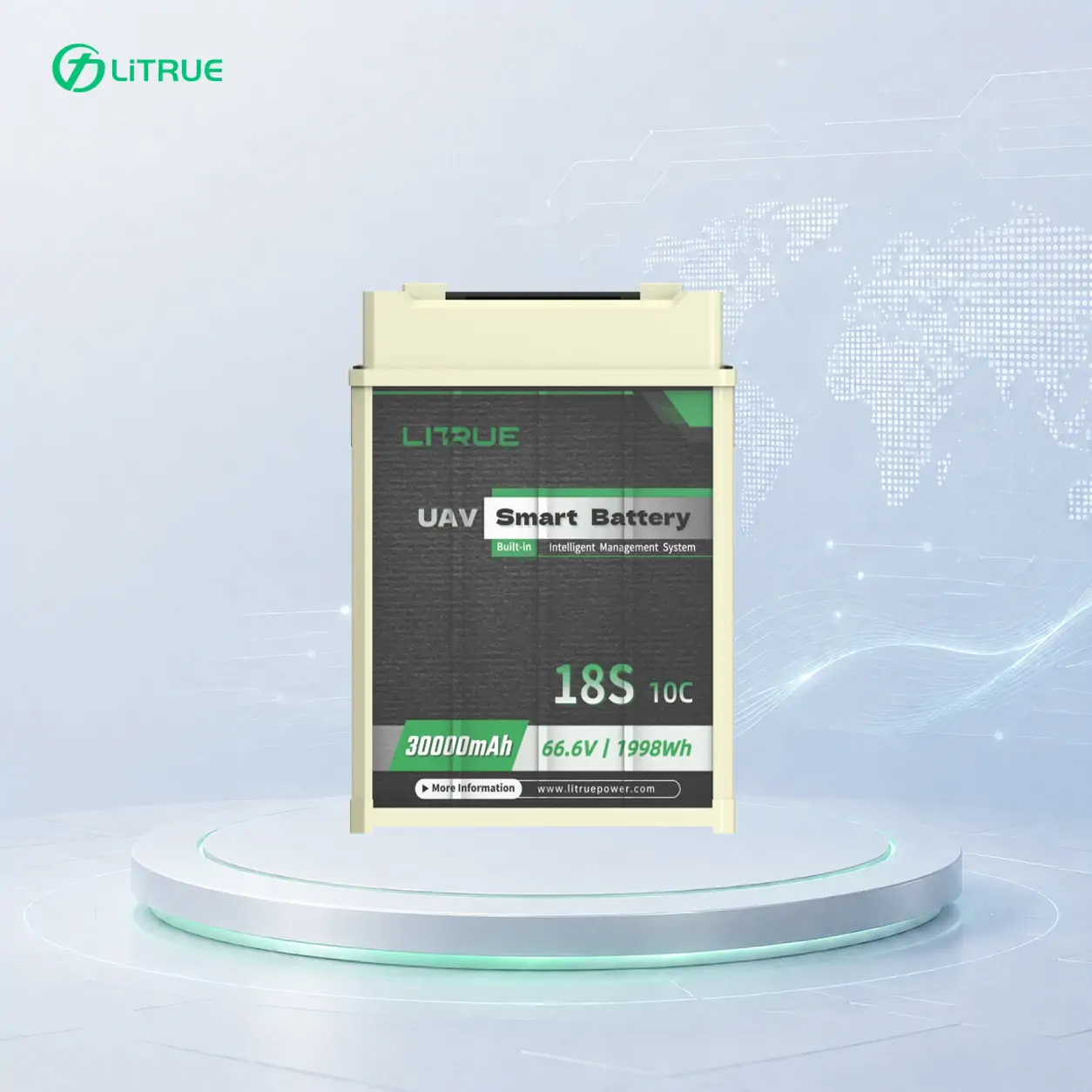

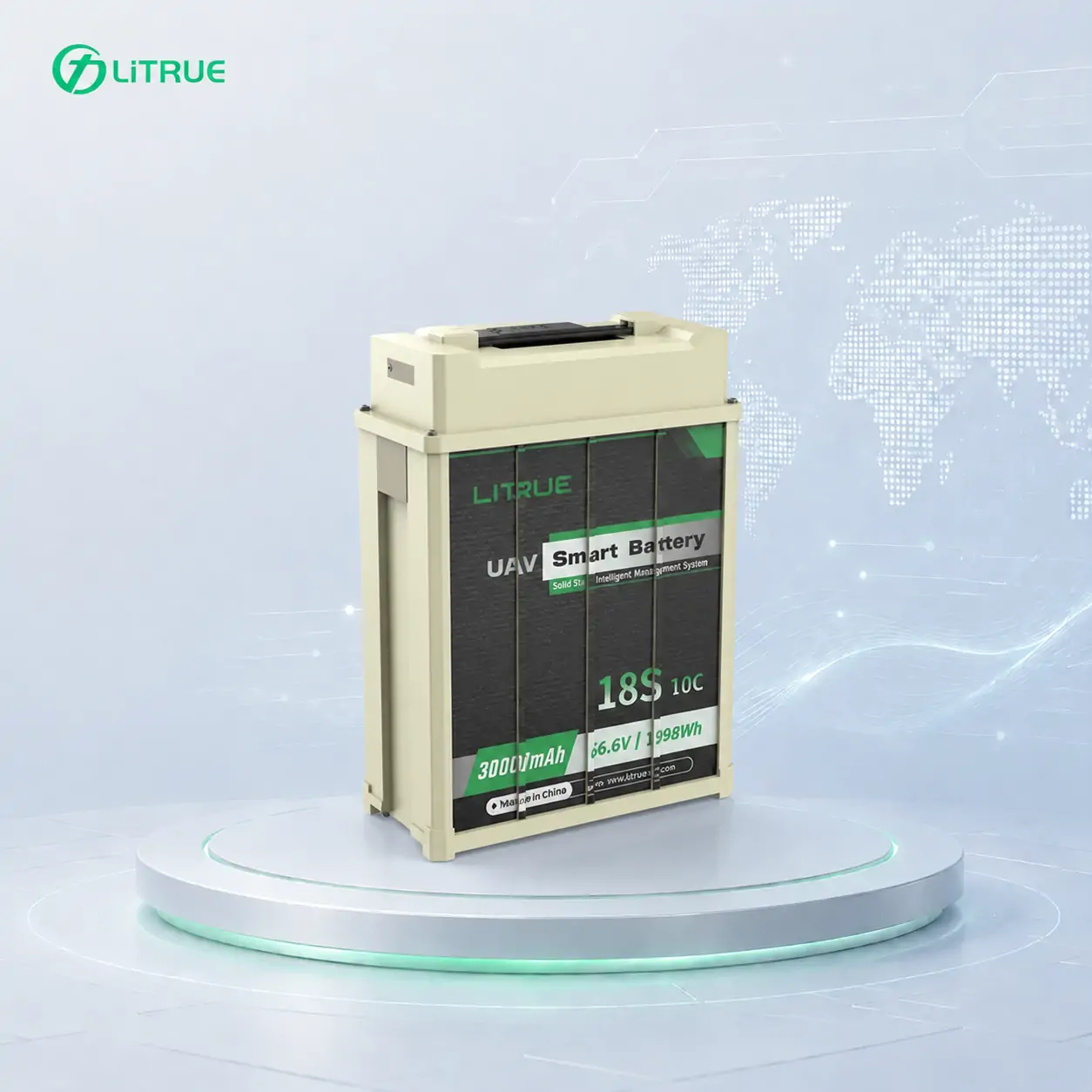

The UAV-JP330L is built for that heavier UAV class. It uses a 1P18S NMC configuration with 66.6V nominal voltage, 30Ah capacity, and 1.998kWh energy. The pack supports 240A continuous discharge and 300A peak discharge for 30 seconds at 25°C, with CAN communication, IP65 protection, and a 16kg product weight. See LiTrue's full range of UAV lithium battery packs for related drone battery options.
Application Areas
- Heavy-Lift Multi-Rotor UAVs: 1.998kWh energy and 300A peak discharge support aircraft that need high thrust for takeoff and payload lifting.
- Industrial Inspection Drones: IP65 protection, -40°C to +60°C discharge operation, and ≤5000m altitude rating support outdoor work around power lines, towers, and infrastructure.
- Mapping and Survey UAVs: 66.6V architecture and 30Ah capacity help extend mission time for large aircraft carrying cameras, LiDAR, or survey payloads.
- Emergency Response Platforms: high discharge current supports rapid climb and maneuvering when the aircraft needs to reach a site quickly with equipment onboard.
- OEM UAV Programs: CAN communication, defined voltage range, and LiTrue's pack engineering support make the UAV-JP330L suitable for custom drone integration projects.
FAQs
What type of UAV is the UAV-JP330L designed for?
The page specifies multi-rotor drones with a payload of less than 50kg. It is a better fit for heavy-lift and industrial UAVs than for small lightweight drones, because the pack weighs 16kg and uses a 66.6V platform.
How much current can the UAV-JP330L deliver?
The UAV-JP330L supports 240A maximum continuous discharge. It also supports 300A peak discharge for 30 seconds at 25°C. Final aircraft performance still depends on motor selection, ESC ratings, wiring, cooling, and flight profile.
What voltage range should my UAV system support?
The pack has 66.6V nominal voltage and an operating voltage range of 54V to 78.3V. The flight controller, ESCs, charger, low-voltage limits, and safety logic should be configured around that range.
Can the battery communicate with the flight controller?
Yes. The UAV-JP330L supports CAN communication. That allows compatible UAV systems to read battery data and protection alarms from the BMS.
