Review the detailed engineering specifications below. Engineered for global compliance, this battery meets stringent design standards including GB/T 38058-2019, and is fully certified with RoHS, UL 2054, and UN38.3.

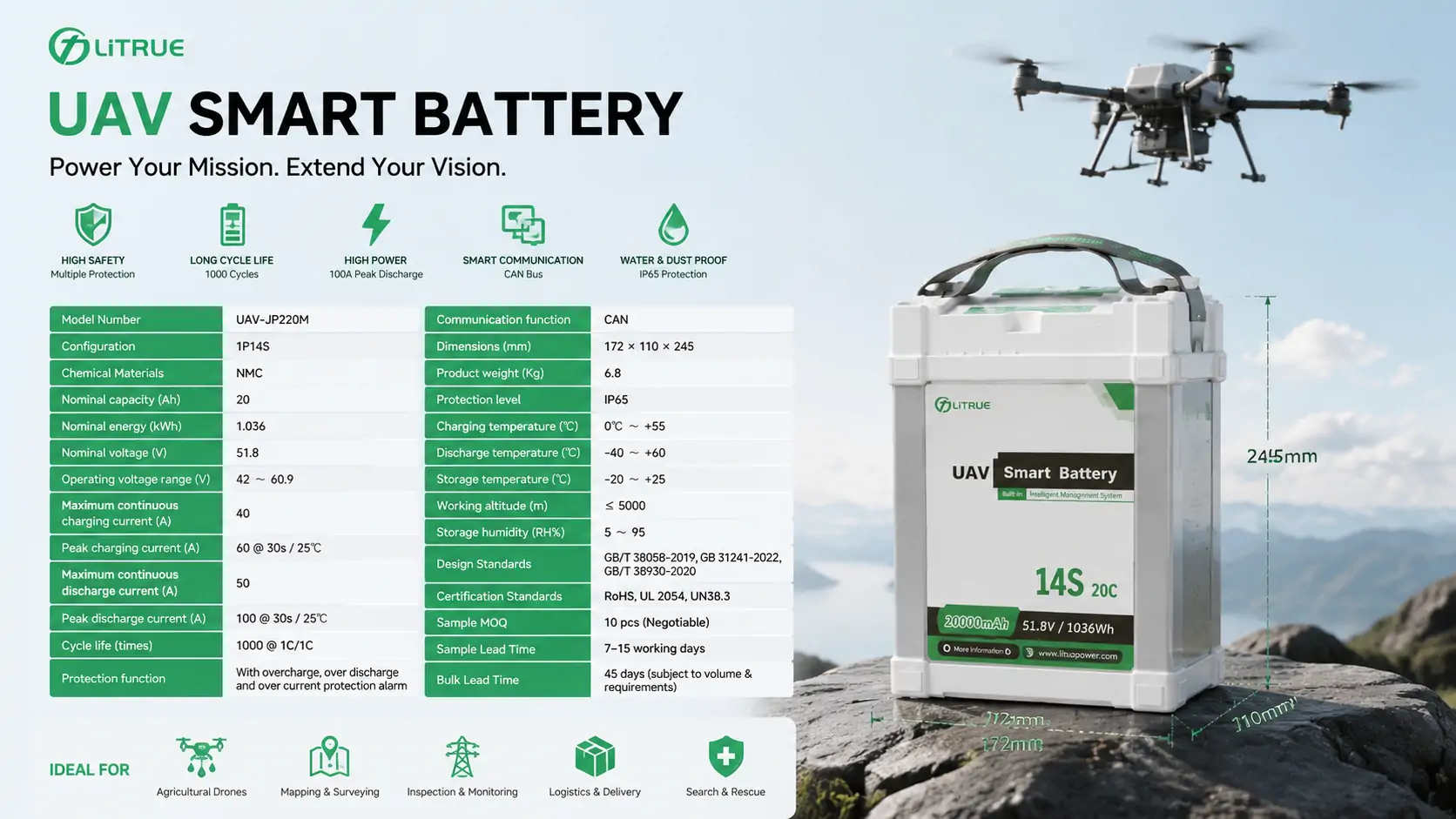

| Model Number | UAV-JP220M |
|---|---|
| Configuration | 1P14S |
| Chemical Materials | NMC |
| Nominal capacity (Ah) | 20 |
| Nominal energy (kWh) | 1.036 |
| Nominal voltage (V) | 51.8 |
| Operating voltage range (V) | 42 ～ 60.9 |
| Maximum continuous charging current (A) | 40 |
| Peak charging current (A) | 60 @ 30s / 25℃ |
| Maximum continuous discharge current (A) | 50 |
| Peak discharge current (A) | 100 @ 30s / 25℃ |
| Cycle life (times) | 1000 @ 1C/1C |
| Protection function | With overcharge, over discharge and over current protection alarm |
| Communication function | CAN |
| Dimensions (mm) | 172 × 110 × 245 |
| Product weight (Kg) | 6.8 |
| Protection level | IP65 |
| Charging temperature (℃) | 0℃ ～ +55 |
| Discharge temperature (℃) | -40 ～ +60 |
| Storage temperature (℃) | -20 ～ +25 |
| Working altitude (m) | ≤ 5000 |
| Storage humidity (RH%) | 5 ～ 95 |
| Design Standards | GB/T 38058-2019, GB 31241-2022, GB/T 38930-2020 |
| Certification Standards | RoHS, UL 2054, UN38.3 |
| Sample MOQ | 10 pcs (Negotiable) |
| Sample Lead Time | 7–15 working days |
| Bulk Lead Time | 45 days (subject to volume & requirements) |
Ideal Commercial Applications
Due to its compact size and stable power delivery, the UAV-JP220M is highly recommended for:
- High-resolution Aerial Photography and Cinematography
- LiDAR Mapping and Topographical Surveying Drones
- Power Line and Solar Farm Inspection UAVs
- Light-payload Medical and Logistics Delivery Drones
Solution
Commercial UAV battery design is always a trade between payload and endurance. Add battery mass, and the drone loses room for cameras, LiDAR, mapping equipment, or delivery cargo. Cut battery mass too far, and the pack may not hold voltage during climb, wind correction, or return-to-home power demand.
The UAV-JP220M is built for that balance point. It delivers 51.8V, 20Ah, and 1.036kWh in a 6.8kg NMC battery pack, with 50A continuous discharge and 100A peak discharge for 30 seconds at 25°C. The built-in CAN communication and IP65 housing make it easier to integrate into professional UAV platforms. See LiTrue's full range of UAV lithium battery packs for related voltage and capacity options.
FAQs
How much power can the UAV-JP220M deliver during flight?
The pack supports 50A maximum continuous discharge. For short load windows, it supports 100A peak discharge for 30 seconds at 25°C. Final aircraft performance still depends on motor choice, ESC settings, cooling, wiring, and flight profile.
What drone voltage system does this battery fit?
The UAV-JP220M uses a 1P14S configuration with 51.8V nominal voltage. Its operating voltage range is 42V to 60.9V, so the flight controller, ESCs, charger, and low-voltage protection settings need to match that range.
Can this battery communicate with the UAV flight system?
Yes. The pack uses CAN communication. That allows the battery management system to report operating data and protection status to compatible UAV control systems.
Is the UAV-JP220M suitable for outdoor missions?
Yes. It has an IP65 protection level, -40°C to +60°C discharge temperature range, and a working altitude rating of ≤5000m. Charging should stay within 0°C to +55°C, and storage should stay within -20°C to +25°C.
Can LiTrue customize this battery for my UAV platform?
Yes. LiTrue can support voltage matching, enclosure layout, connector selection, CAN protocol alignment, and pack validation for UAV OEM projects. Send the aircraft voltage, peak current, payload weight, flight time target, and available battery bay size to the LiTrue engineering team.
