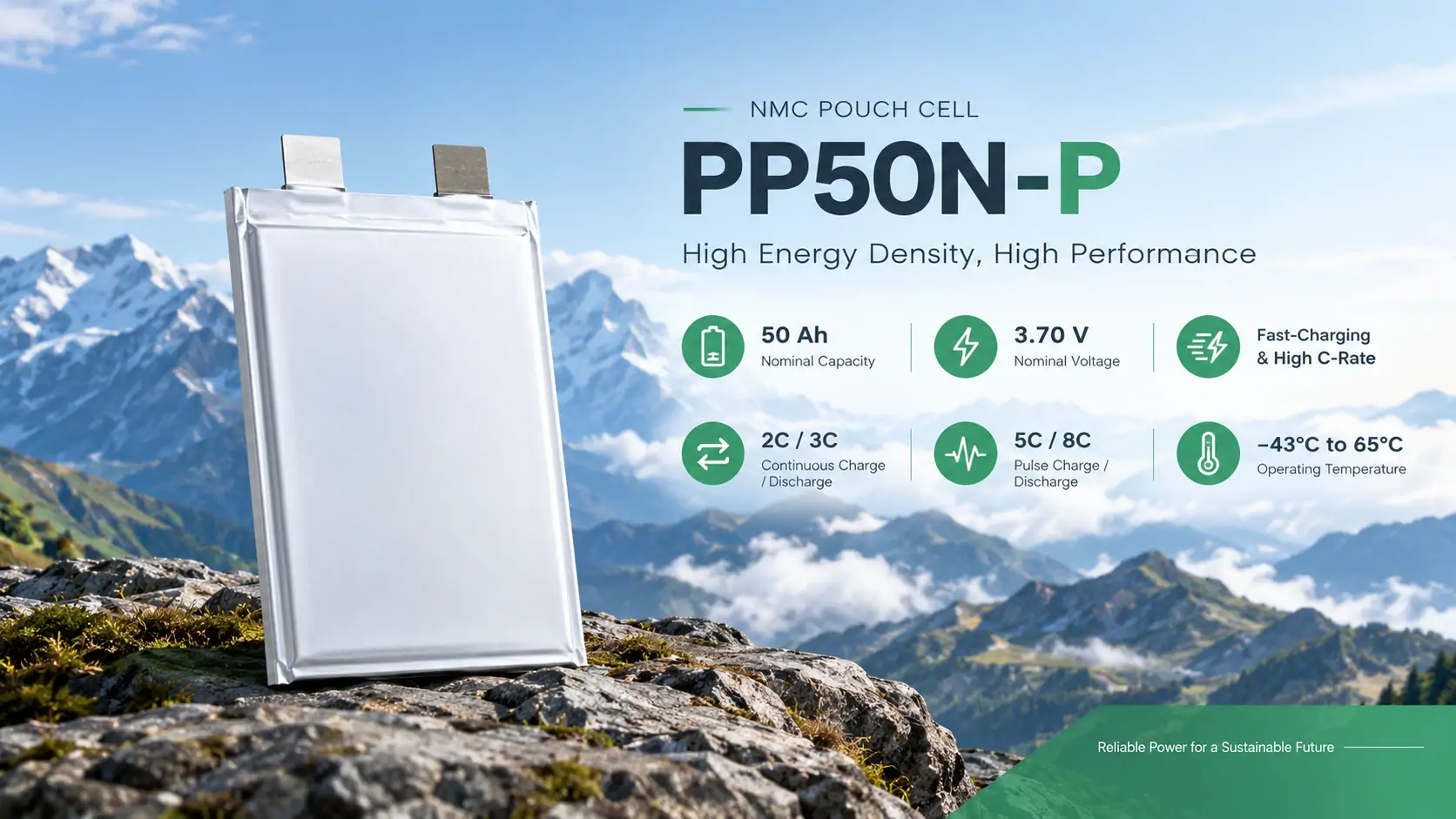

| Model Number | PP50N-P |
|---|---|
| Classification | Fast-Charging, High C-Rate |
| Chemical Materials | NMC (Lithium Nickel Manganese Cobalt Oxide) |
| Cell Structure | Pouch |
| Nominal Capacity (Ah) | 50 |
| Nominal Voltage (V) | 3.70 |
| Cell Weight (g) | 818 |
| Energy Density (Wh/kg) | 226 |
| Max. Continuous Charge Rate | 2C |
| Max. Continuous Discharge Rate | 3C |
| Max. Pulse Charge Rate | 5C |
| Max. Pulse Discharge Rate | 8C |
| Operating Temperature (°C) | -43 to 65 |
| Dimensions (T×W×H, mm) | 11.4 × 142 × 232 |
Other Cells in the Fast Charging High C-Rate Cell Series
| Model | Capacity | Voltage | Weight | Continuous Rate | Pulse Rate | Operating Temp. | Dimension |
|---|---|---|---|---|---|---|---|
| PC20N-P | 20Ah | 3.70V | 345g | 3C/5C | 5C/15C | -43℃~65℃ | 9.6×90×192mm |
| PC22C-P1 | 22Ah | 3.75V | 421g | 3C/5C | 5C/15C | -43℃~65℃ | 11.3×90×192mm |
| PJ28N-P | 28Ah | 3.70V | 463g | 2C/5C | 5C/15C | -43℃~65℃ | 10.3×90×231mm |
| PA50N-P | 50Ah | 3.70V | 820g | 2C/3C | 5C/8C | -43℃~65℃ | 10.0×161×232mm |
| PA58N-P | 58Ah | 3.70V | 940g | 2C/3C | 5C/8C | -43℃~65℃ | 12.3×161×232mm |
| PP50N-P | 50Ah | 3.70V | 818g | 2C/3C | 5C/8C | -43℃~65℃ | 11.4×142×232mm |
| PP56N-P | 56Ah | 3.70V | 925g | 2C/3C | 5C/8C | -43℃~65℃ | 13.0×142×232mm |
Solution
Many high-power battery designs have to choose between compact packaging and peak-current capability. When the cell cannot charge quickly or maintain voltage during a hard load, the usual workaround is more parallel cells, more weight, and more cost.
PP50N-P is a 50Ah NMC pouch cell designed for that middle ground. It supports 2C continuous charging, 3C continuous discharge, and 8C pulse discharge in an 818g format, allowing pack designers to build for real duty cycles rather than a single worst-case current event. See LiTrue’s complete range of battery cells for additional formats and rate profiles.
Application Areas
- Industrial UAVs: Supports 3C continuous propulsion demand and 8C pulse output for takeoff, climbing, and payload maneuvers.
- Electric Motorcycles and Performance EVs: Balances fast-charge capability with the high-current delivery needed for acceleration.
- AGVs and Industrial Robotics: Handles repeated acceleration and turnaround charging in demanding operating cycles.
- Custom High-Power Battery Packs: The 3.70V cell platform supports flexible series-parallel configurations for application-specific voltage targets.
FAQs
What current can PP50N-P deliver?
At 50Ah, 3C continuous discharge corresponds to 150A, while 8C pulse discharge corresponds to 400A. Confirm pulse duration, thermal conditions, cable sizing, and protection settings for the final pack.
How quickly can PP50N-P be charged?
The cell is rated for up to 2C continuous charging and 5C pulse charging. The final charging profile must be validated for temperature, charger control, and pack thermal design.
What pack voltage can I build with PP50N-P?
Each cell is 3.70V nominal. A 12S configuration is 44.4V nominal, while a 14S configuration is 51.8V nominal. Contact LiTrue’s engineering team to scope a suitable configuration.
Can PP50N-P operate in cold environments?
Yes. Its stated operating-temperature range is -43°C to 65°C. Actual available capacity, charging behavior, and thermal performance should be validated under the intended application load profile.
What are the sample and production lead times?
Sample availability, MOQ, and production lead time depend on the required configuration and order volume. Reach out to LiTrue’s applications team to discuss your project requirements.
