| Model Number | PR30N-P |
| Type | Pouch Cell |
| Chemistry | NMC |
| Nominal Capacity | 30.0Ah |
| Nominal Voltage | 3.70V |
| Nominal Energy Density | 194Wh/kg |
| Dimensions | 11.9mm × 105.0mm × 217.0mm |
| Maximum Continuous Charge / Discharge Rate | 5C / 10C |
| Maximum Pulse Charge / Discharge Rate | 8C / 20C |
| Recommended Operating Temperature | -43℃ to 55℃ |
| Room Temperature Cycle Life | ≥2000 cycles (100% DOD-80% SOC, 5C/8C) |
| Design Standards | GB/T 38058-2019, GB 31241-2022 |
| Certification Standards | UN38.3, RoHS |
| Sample MOQ | 10 pcs (Negotiable) |
| Sample Lead Time | 7–15 working days |
| Bulk Lead Time | 45 days (subject to volume & requirements) |
Ultra-Fast Charging High C-Rate Cell Series
ultra-fast charging high C-rate cell series is built for battery packs that need fast charge acceptance, high discharge output, and stable operation in low-temperature environments.
| Model | Capacity | Voltage | Weight | Continuous Rate | Pulse Rate | Operating Temp. | Dimension |
|---|---|---|---|---|---|---|---|
| PC16N-P | 16Ah | 3.70V | 335g | 6C/10C | 15C/25C | -43℃~65℃ | 9.2×90×192mm |
| PR22N-P | 22Ah | 3.70V | 430g | 6C/10C | 15C/25C | -43℃~65℃ | 9.1×105×217mm |
Solution
High-power battery systems often fail at the same point: the cell may have enough capacity on paper, but voltage drop, heat generation, and low-temperature weakness limit the usable output under real load. This is especially clear in UAVs, emergency power systems, and other applications that require both high discharge rate and stable cold-weather performance.

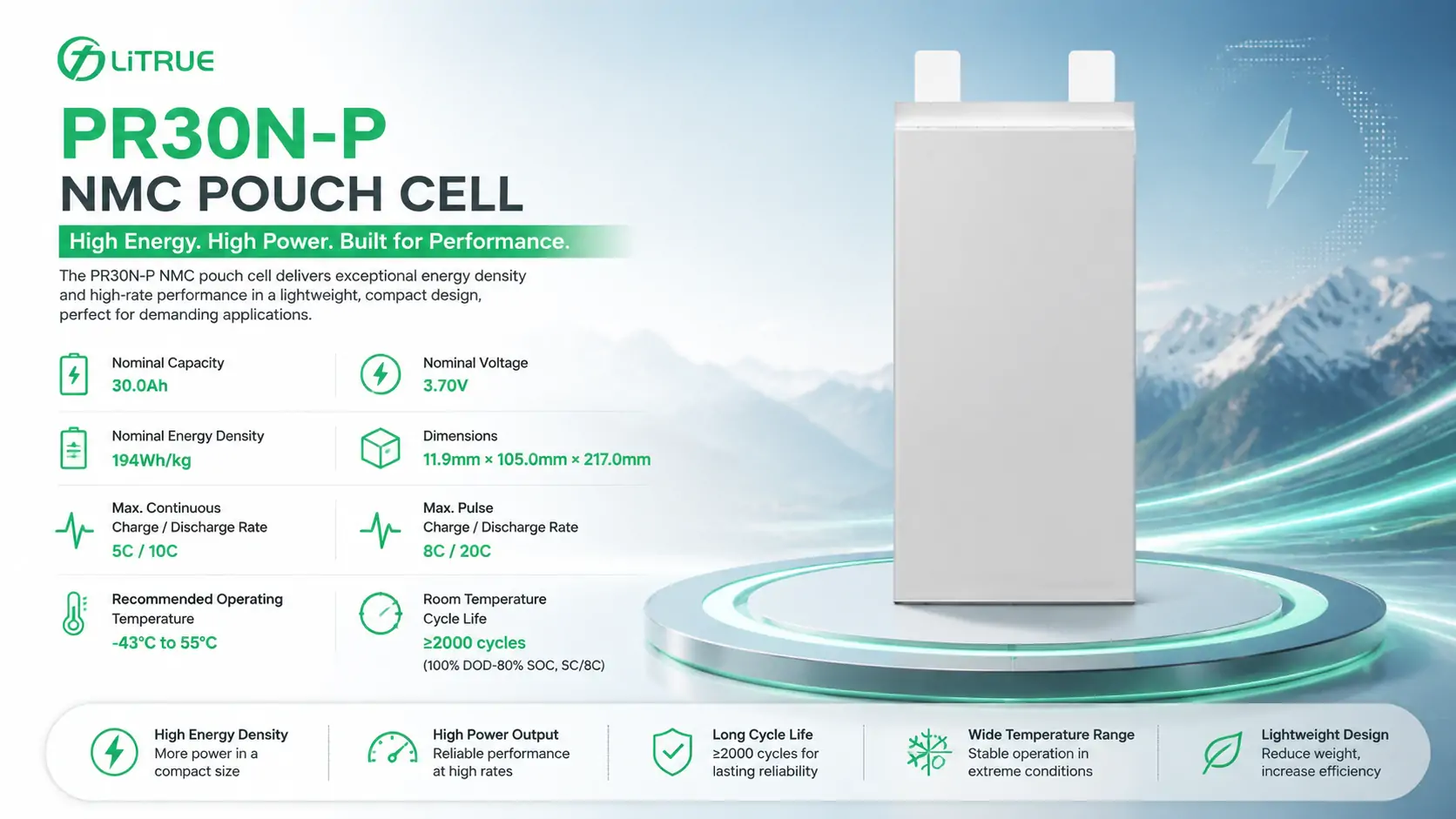

The PR30N-P is a 30Ah NMC pouch cell designed for high-rate discharge and wide-temperature operation. With 10C continuous discharge, 20C pulse discharge, and a recommended operating range from -43℃ to 55℃, it gives pack designers a compact cell option for systems where current output matters as much as energy density. For more cell options, visit LiTrue's battery cells page.
Application Areas
- UAV Battery Packs: suitable for drone platforms that need strong burst current during takeoff, climbing, and high-load flight.
- Low-Temperature Power Systems: the -43℃ operating capability supports equipment used in cold regions and outdoor environments.
- High-Rate Battery Modules: the 5C/10C continuous rate helps pack designers build compact modules for demanding discharge profiles.
- Industrial Mobile Equipment: supports applications that require repeated high-current output with stable room-temperature cycle life.
FAQs
What type of cell is the PR30N-P?
The PR30N-P is a 30Ah NMC pouch cell with a nominal voltage of 3.70V. It is designed for high-rate charge and discharge applications.
What is the maximum discharge capability?
The cell supports 10C maximum continuous discharge and 20C maximum pulse discharge. This makes it suitable for battery packs that need strong short-term power output.
Can this cell work in low-temperature environments?
Yes. The recommended operating temperature range is -43℃ to 55℃, making it suitable for outdoor and cold-region applications.
Can LiTrue provide support for pack design?
Yes. LiTrue can support cell selection, battery pack design, and project matching based on voltage, current, size, and application requirements. Contact the LiTrue team for project evaluation.
