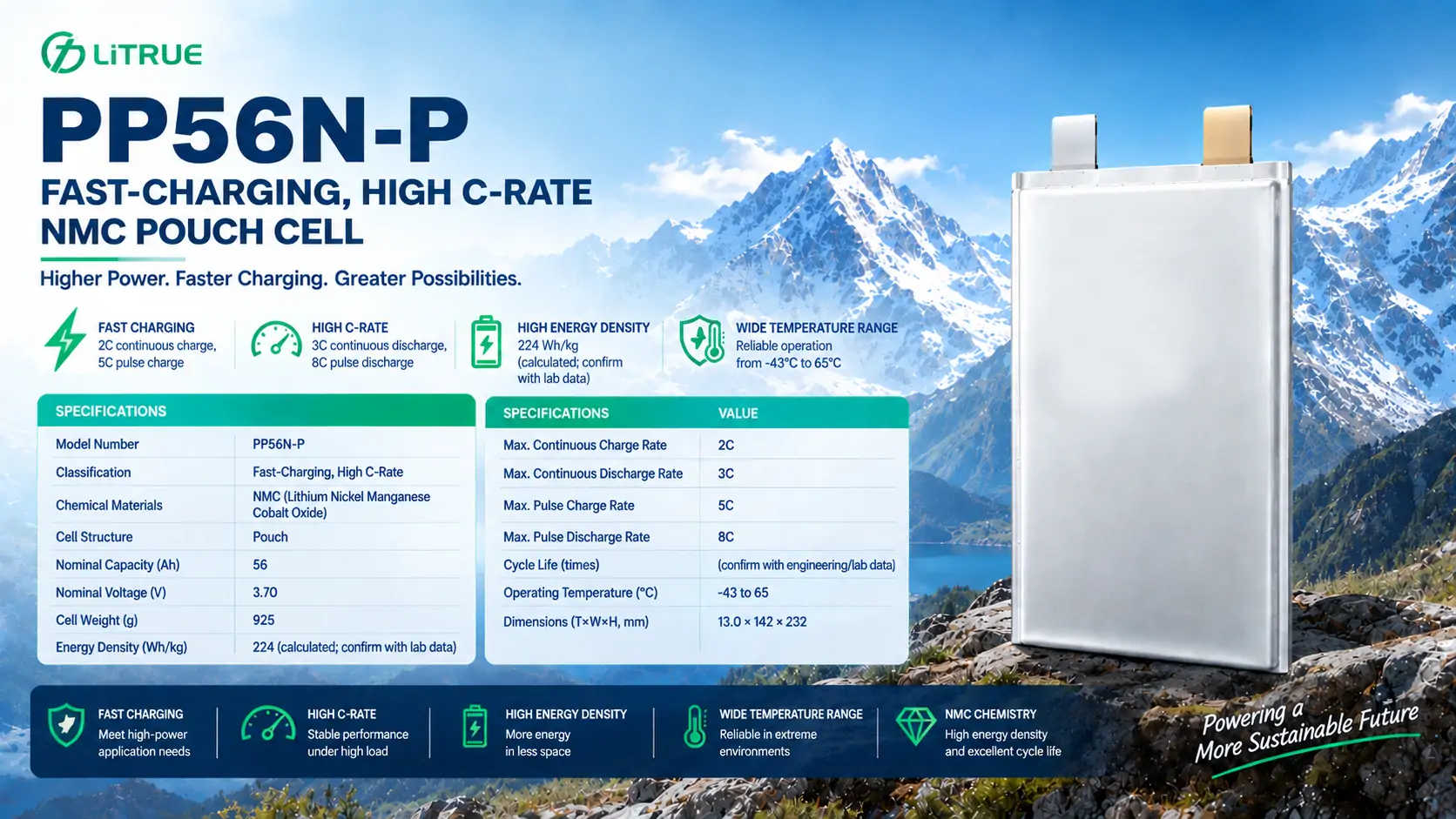

| Model Number | PP56N-P |
|---|---|
| Classification | Fast-Charging, High C-Rate |
| Chemical Materials | NMC |
| Cell Structure | Pouch |
| Nominal Capacity (Ah) | 56 |
| Nominal Voltage (V) | 3.70 |
| Cell Weight (g) | 925 |
| Energy Density (Wh/kg) | 224 |
| Max. Continuous Charge Rate | 2C |
| Max. Continuous Discharge Rate | 3C |
| Max. Pulse Charge Rate | 5C |
| Max. Pulse Discharge Rate | 8C |
| Operating Temperature (°C) | -43 to 65 |
| Dimensions (T×W×H, mm) | 13.0 × 142 × 232 |
Other Cells in the Fast Charging High C-Rate Cell Series
| Model | Capacity | Voltage | Weight | Continuous Rate | Pulse Rate | Operating Temp. | Dimension |
|---|---|---|---|---|---|---|---|
| PC20N-P | 20Ah | 3.70V | 345g | 3C/5C | 5C/15C | -43℃~65℃ | 9.6×90×192mm |
| PC22C-P1 | 22Ah | 3.75V | 421g | 3C/5C | 5C/15C | -43℃~65℃ | 11.3×90×192mm |
| PJ28N-P | 28Ah | 3.70V | 463g | 2C/5C | 5C/15C | -43℃~65℃ | 10.3×90×231mm |
| PA50N-P | 50Ah | 3.70V | 820g | 2C/3C | 5C/8C | -43℃~65℃ | 10.0×161×232mm |
| PA58N-P | 58Ah | 3.70V | 940g | 2C/3C | 5C/8C | -43℃~65℃ | 12.3×161×232mm |
| PP50N-P | 50Ah | 3.70V | 818g | 2C/3C | 5C/8C | -43℃~65℃ | 11.4×142×232mm |
| PP56N-P | 56Ah | 3.70V | 925g | 2C/3C | 5C/8C | -43℃~65℃ | 13.0×142×232mm |
Solution
Fast charging becomes a pack-design problem when the cell cannot absorb current consistently or maintain voltage under load. The usual result is extra parallel cells, larger charging infrastructure, and unnecessary mass.
PP56N-P is a 56Ah NMC pouch cell for systems that need 2C continuous charging, 3C continuous discharge, and 8C pulse output. Its -43°C to 65°C operating range supports projects exposed to both cold start conditions and elevated operating temperatures. See LiTrue’s full range of high-rate battery cells for related configurations.
Application Areas
- Industrial UAVs: Provides 3C sustained discharge for propulsion demand and 8C pulse output for takeoff and rapid maneuver loads.
- Electric Motorcycles and Performance EVs: Supports fast-charge strategies and high-current acceleration events.
- AGVs and Industrial Robotics: Fits repeated-duty applications with frequent acceleration, braking, and fast turnaround charging.
- Portable High-Power Equipment: Combines 56Ah capacity with a 13.0 × 142 × 232mm pouch format for custom battery-pack designs.
FAQs
What current can PP56N-P deliver?
At 56Ah, 3C continuous discharge corresponds to 168A, while 8C pulse discharge corresponds to 448A. Confirm pulse duration, thermal conditions, cable sizing, and protection settings for the final pack.
How quickly can PP56N-P be charged?
The cell is rated for up to 2C continuous charging and 5C pulse charging. The final charging profile must be validated for temperature, charger control, and pack thermal design.
What pack voltage can I build with PP56N-P?
Each cell is 3.70V nominal. A 12S configuration is 44.4V nominal, while a 14S configuration is 51.8V nominal. Contact LiTrue’s engineering team to scope a suitable configuration.
Can PP56N-P be used in low-temperature environments?
Yes. Its stated operating-temperature range is -43°C to 65°C. Actual available capacity, charging behavior, and thermal performance should be validated under the intended application load profile.
What are the sample and production lead times?
Sample availability, MOQ, and production lead time depend on the required configuration and order volume. Reach out to LiTrue’s applications team to discuss your project requirements.
